NOYAFA Manufacture

NOYAFA NF-826 Cable Locator Underground Wire Locator

NOYAFA NF-826 Cable Locator Underground Wire Locator

  • Model Number: NF-826
  • Customized support: OEM / ODM / OBM
  • Depth Range: 2m
  • Voltage Detecting: Yes
  • Max Cable Length: 1,000m
  • Working Voltage Range: 0 - 400V
  • Sensitivity Adjustment: Various Modes
  • Power Supply: LI-battery
  • Signals & Result Display: Tone & LCD

Product Features

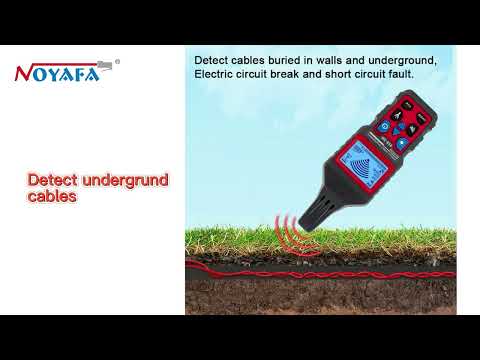

  • Finds for open or short cable in the wall or earth. Locates and traces communication cables, power cables, electrical wires, and water/gas/heating supply pipelines buried in the earth or wall. The range of detection depth is 0.1m - 2m.
  • Break & Short-circuit Points Detecting. Quickly find the location of the breakpoint and short-circuit point in cables and wires buried in the earth or wall.
  • Finds for fuse and safeguard. Find the fuse or switch in the corresponding electrical wire.
  • Finds for socket or junction box is envelop. Finds electrical sockets and distribution sockets that are covered accidentally by plastering.
  • Finds for open or short conduit under the floor.
  • AC / DC Voltage Measurement. The transmitter has an integrated AC / DC voltmeter for linear measurement of 12-400V DC/AC voltage.
  • Non-contact Voltage (NCV) Testing. The receiver (the tone probe) can be used to detect AC voltage presence.
  • LCD Display. Both transmitter and receiver have a 52*35mmTN screen with a backlight to display the detecting info like power level, code, battery, detected voltage type and value, and high-voltage alert.
  • A Built-in LED Light. An internal LED light illuminates the dark environment for easy operation.
  • Certification. Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
