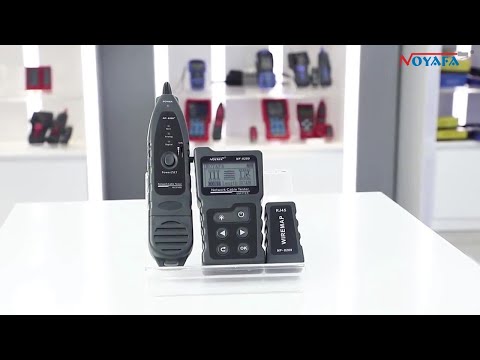

NOYAFA NF-8209 LCD Display Measure Length Lan Cable POE Wire Checker

NOYAFA NF-8209 LCD Display Measure Length Lan Cable POE Wire Checker

  • Package Dimensions :10.67 x 6.54 x 1.93 inches; 15.52 Ounces
  • Item model number :NF-8209
  • Date First Available: May 9, 2020
  • Manufacturer: Noyafa
  • Customized support: OEM / ODM / OBM



  • Cable type: CAT5、CAT6 (STP & UTP)
  • Test with a switch directly: Yes
  • Max range: 600m


  • Cable type: CAT5、CAT6 (STP & UTP)
  • Test range: 2~200m
  • Accuracy: ±1.6m
  • Breakage Location: Yes


  • Cable type: CAT5、CAT6 (STP & UTP)
  • Max. signal voltage: 8Vp-p
  • Frequency: 130KHz
  • AC filter: Yes
  • Max range: 600m


  • Test range: DC 5~60V standard/non-standard PoE switch
  • Voltage display: Yes
  • PSE type: IEEE 802.3af/at

LCD: 128*64 Dot-matrix with backlight

Power supply: AAA*3 (Not included)

Low battery warning: 2.7V

Auto-off time: 15min、30min、60min、OFF

Voltage protection: DC48V 5mA

Max working current: <150mA


  • Sensitivity adjustable: Yes
  • AC Voltage detecting: Yes
  • Lamp: Yes
  • Battery type: 9V*1 (Not included)
  • Low battery warning: 6± 0.5V
  • Max working current: <100mA


  • Wiremap Port: RJ45
  • Voltage protection: DC48V 5mA

Product Features:

NF-8209 is a new generation to offer digital and analog signaling all-in-one network toner and probe. It has three modes for options to track cable digital mode, analog mode, and PoE mode. That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement, cable faults testing, PoE testing, hub blink, and NCV function, all these make it a must-tool for cabling engineers.;

  • 1. CONT-- Test open, short, cross, etc for STP, UTP cable.
  • 2. Length--measure the length of the LAN cable, the range is 2.5m~200m.
  • 3. Scan--Analog/Digital/ PoE mode to locate Lan cables.
  • 4. PoE-- available for standard or non-standard PoE switch (5~60V), identify AT or AF standard of PSE type.
  • 5. Flash--locate the network port by the flashing port light on the switch/ router.
