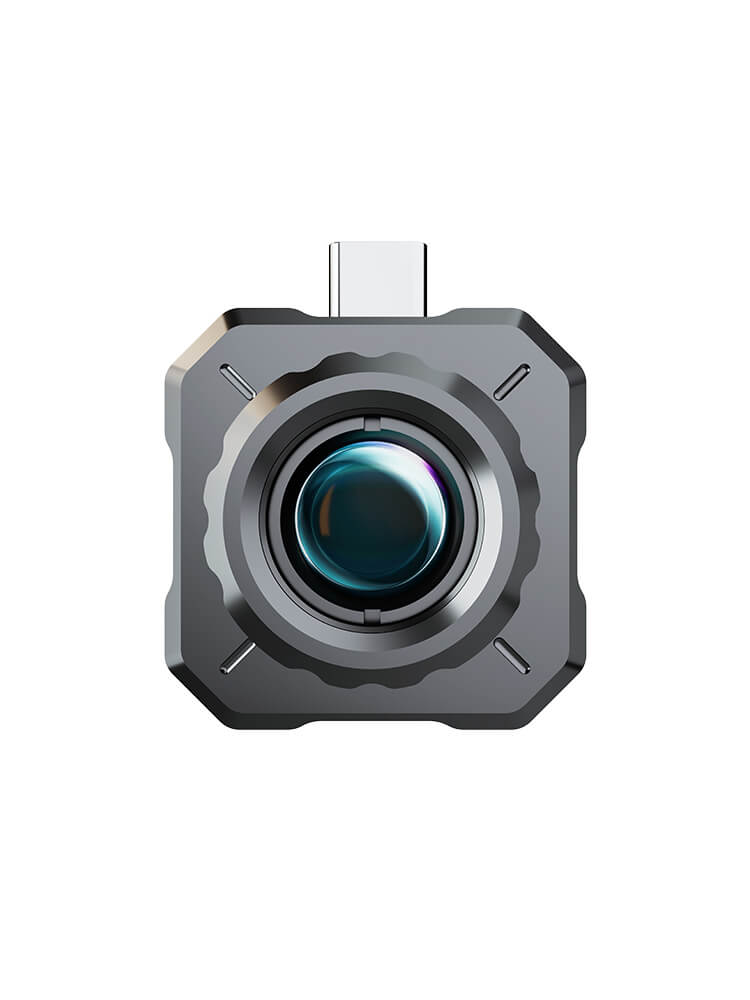

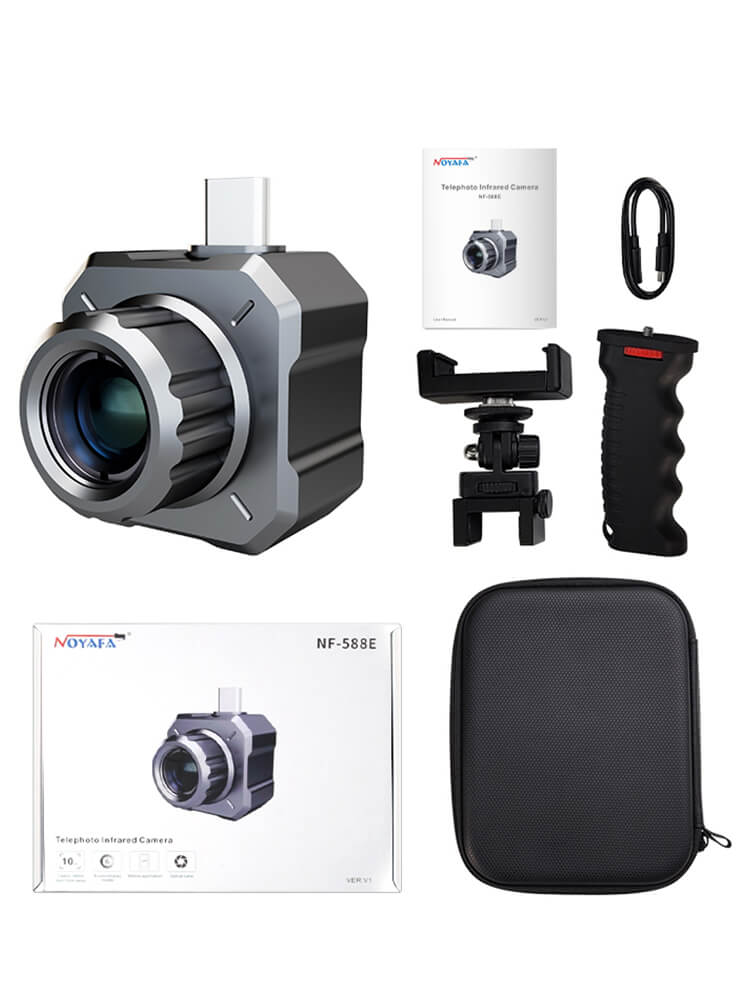

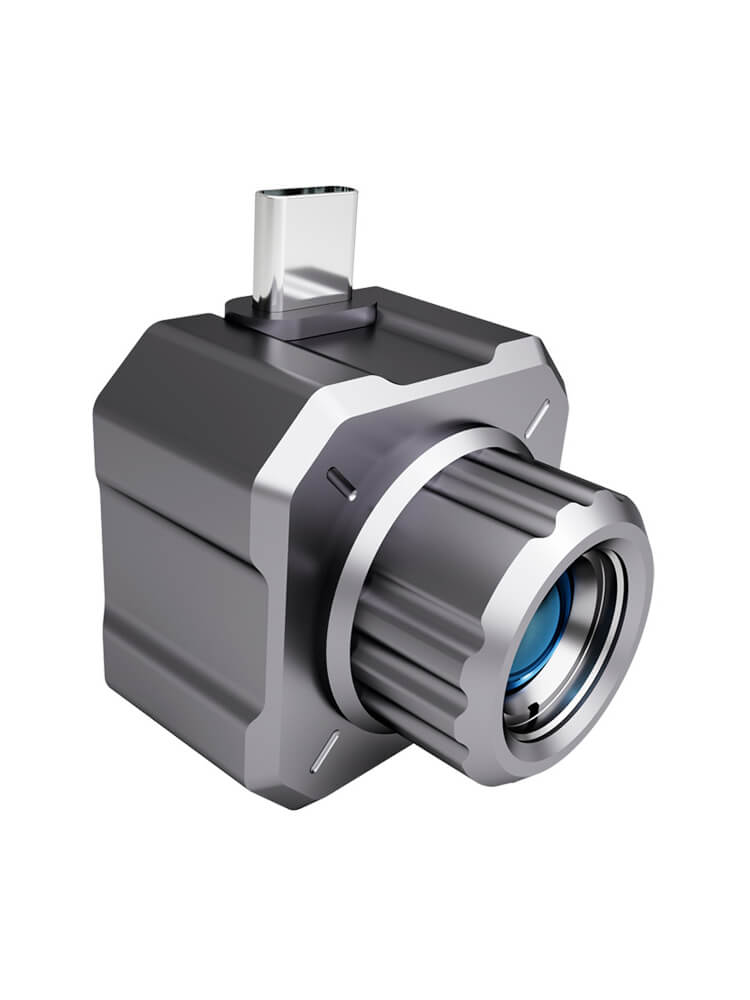

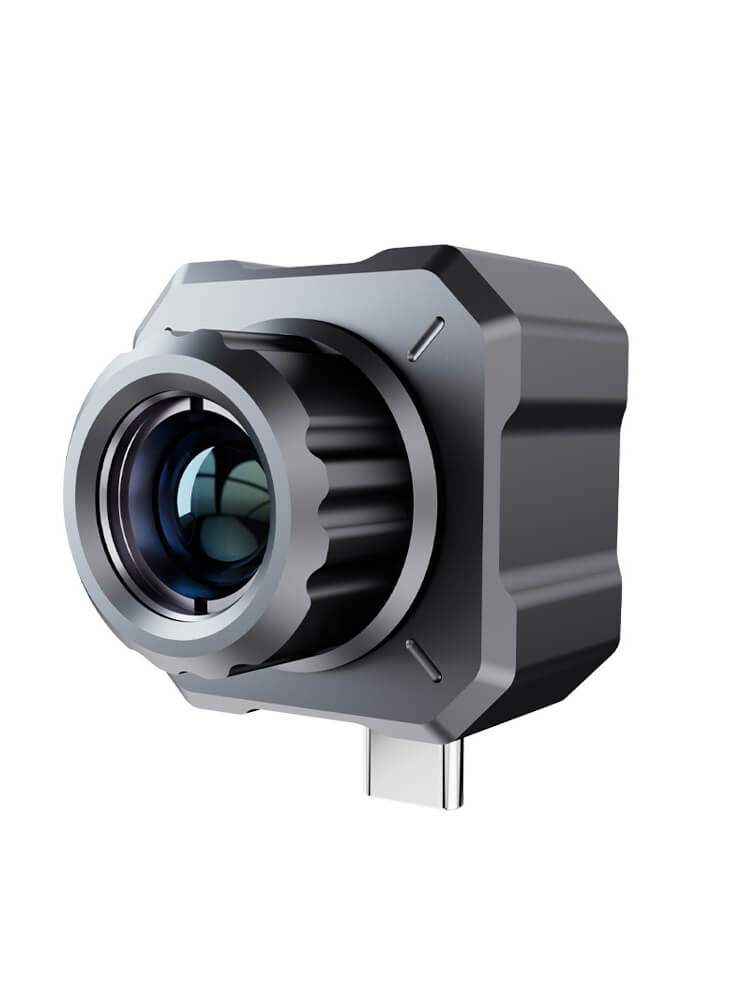

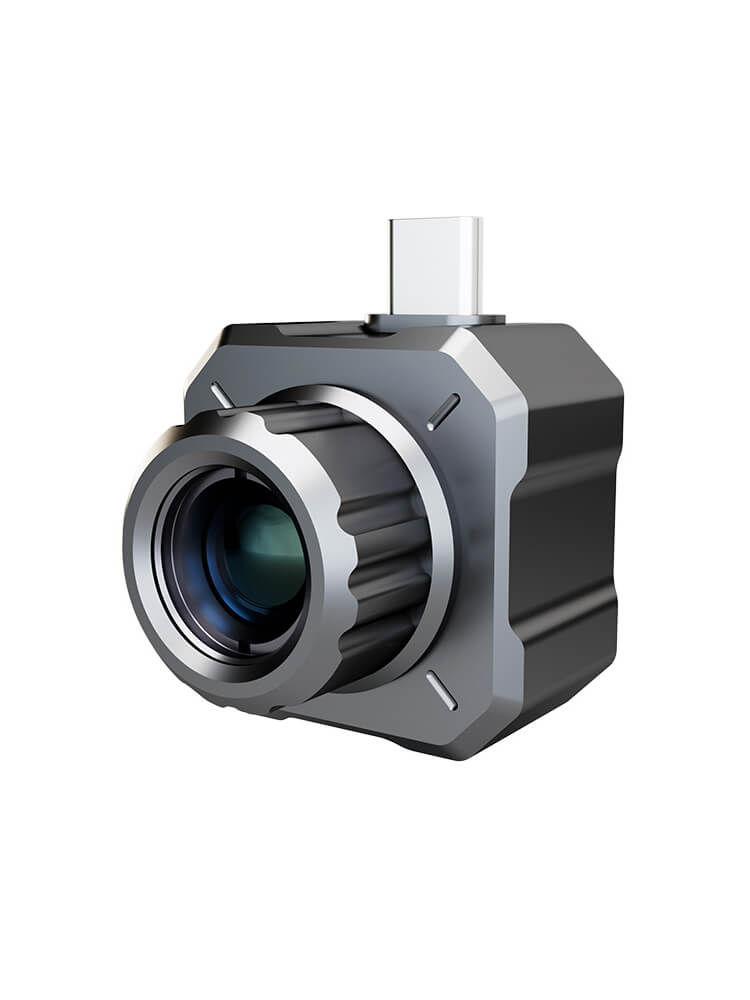

NOYAFA NF-588E Android Thermal Camera Accessory with High Resolution

NOYAFA NF-588E Android Thermal Camera Accessory with High Resolution

Features & Benefits:

  • Infrared Camera with High Definition: The NF-588 provides clear and vivid thermal imaging with a 256*192 output resolution.
  • Long-distance Detection & Night Vision: Spot objects or life forms from far distances, even in darkness, displaying directly on the screen for hunting or searching purposes.
  • Swift Infrared Camera: Track fast-moving objects with GPS positioning, laser indication, crosshair division, and hotspot tracking.
  • Dependable Mobile Thermal Camera: Works in various challenging conditions, with a temperature range of 40°C to 85°C, precise hotspot tracking in the 8 - 14 μm spectrum, exceptional thermal sensitivity (< 50mK @25°C), IP54 waterproof and dustproof design, and a high-definition 10nm lens.

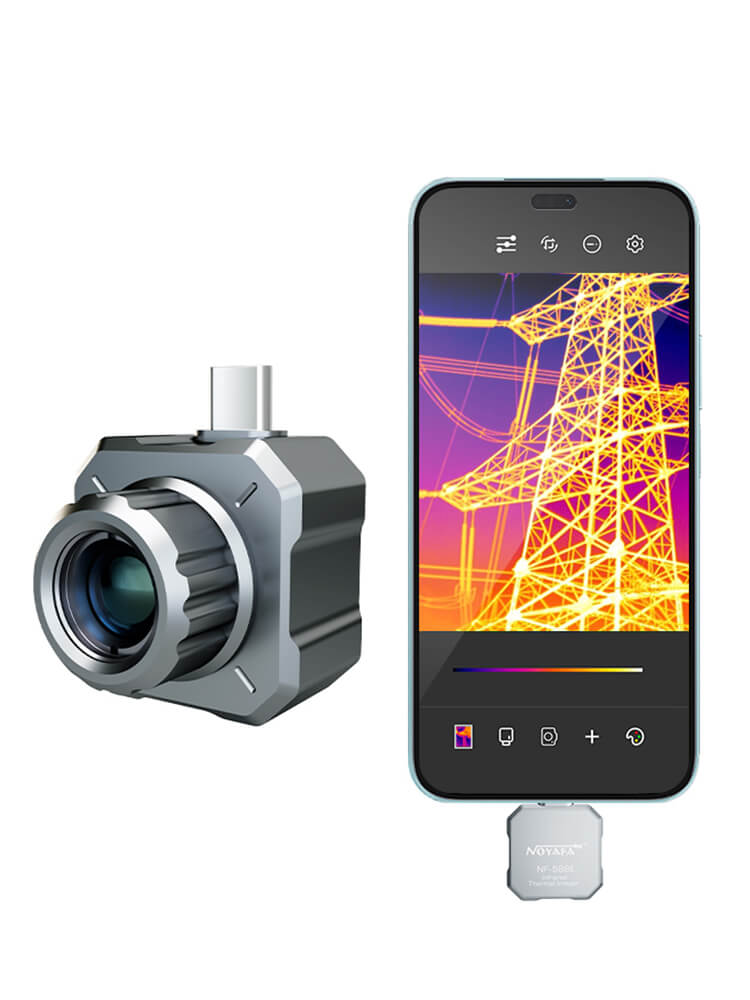

  • Simple and Convenient Capture: Easily connect NF-588 to your phone for thermal image capture. Plug and play without any complicated setup!
  • Multi-Purpose Device: Ideal for tasks like home inspections, industrial checks, wilderness survival, night hikes, social media live streams, and animal tracking.
  • Compact & Portable: Small and lightweight, the NF-588 is as convenient to carry as a watch, ensuring easy transport and usage.
  • Affordable Thermal Camera: Priced at half the cost of other HD mobile thermal cameras, offering superior experience and quality.

Product Specs

  • Model: NF-588E
  • Brand: NOYAFA
  • Focus Type: Manual Focus
  • Finderscope: Reflex
  • Infrared Resolution: 256*192
  • Wavelength coverage: 8-14um
  • Frame rage: 25Hz
  • NETD: <50mk@25°C
  • FOV: 17.5° * 13.2°
  • Focal length: 10mm
  • Focusing method: Fixed focus
  • Ditital zoom: 1X - 4X (adjust with screen gestures)
  • Temperature tracking: Yes
  • Color palettes: Iron red, rainbox, white hot, black hot, cool blue, red hot
  • GPS location: Longitude and latitude, speed and altitude information
  • Compass: Yes
  • Screen rorate: Yes
  • Photograph: Yes
  • Video: Yes
  • Language: Chinese & English
  • Working Temp: -20°C - 60°C
  • Storage Temp: -40°C - 85°C
  • Waterproof: IP54

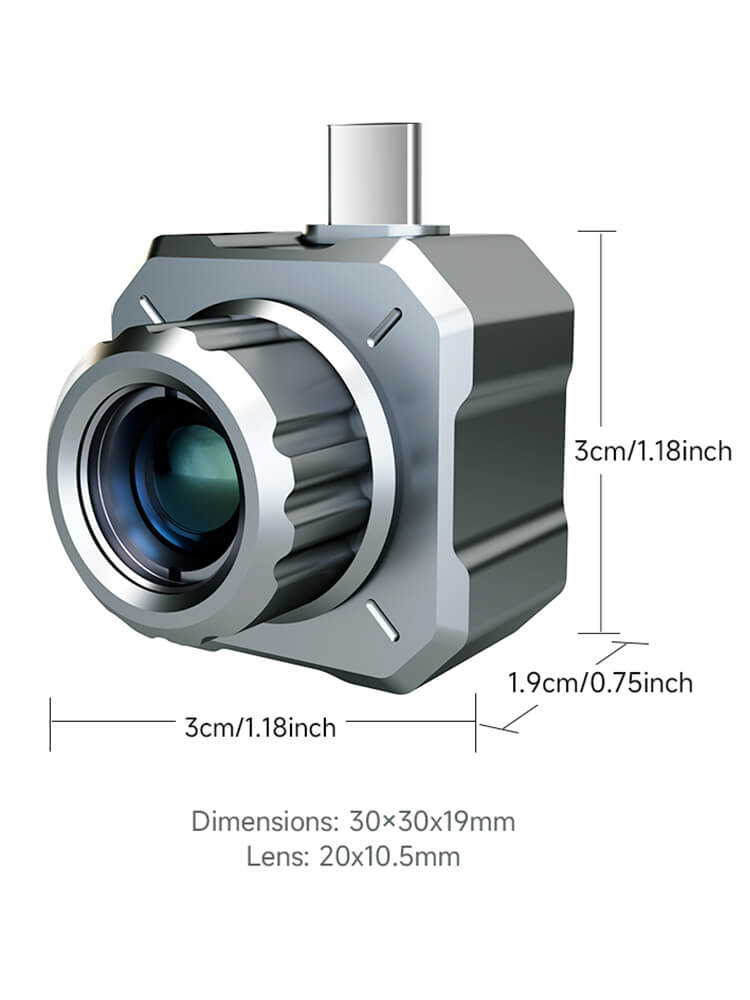

  • Size: 30*30*19mm

Product Manual

NF-588E Android Thermal Camera User Manula

View full details

Get Quote

Company Profile

SHENZHEN NOYAFA TECHNOLOGY CO., LTD is a manufacturer set up in 2006 and based in Shenzhen,China, supplying cable tester, wire tracker, fiber tester, laser distance meter, CCTV tester and other test equipment. After years of development, the company has created a wealth of experience in sales and after-sales service team. Manufacturers and users in the formation of a very high reputation. At present, our products are exporting to all over the world, especially to Europe, Asian. No matter where of when, customer satisfactory is our eternal pursuit and goal.

Our Services

After-Sale service Commitment

1.Product quanlity
All products are guaranteed on consistency
All products are stabilized after 24-hour aging testing.
All products are 100% inspected PASS before shipment.
All products are ensured compliance with national standards, GB4793.1-GB1094.6-96 Degrees of protection provided by enclosure,
GB4793-1984 Safety
requirements for electronic measuring instruments, GB191 Packaging storage and transportation signs.

2. After-sales service Clause
2.1 Responsibility
We are only responsible for the samage or loss before opening-box inspections, otherwise, it is out of our responsibility in 6 months calid from the sate of purchasing to provide with further services for repair, maintenance or replacement.
2.2 Escape Provision
The following is out of our commitment and maintenance for free:
A. No any other valid proof.
B. Unauthorized repair to misuse or removal.
C. Normal wear and tear of accessories.
D. Abnormal connection to high-voltage equipments or long-time unuse.
E. Damage or defects caused by force majeure.
F. Improper maintenance and repair.
