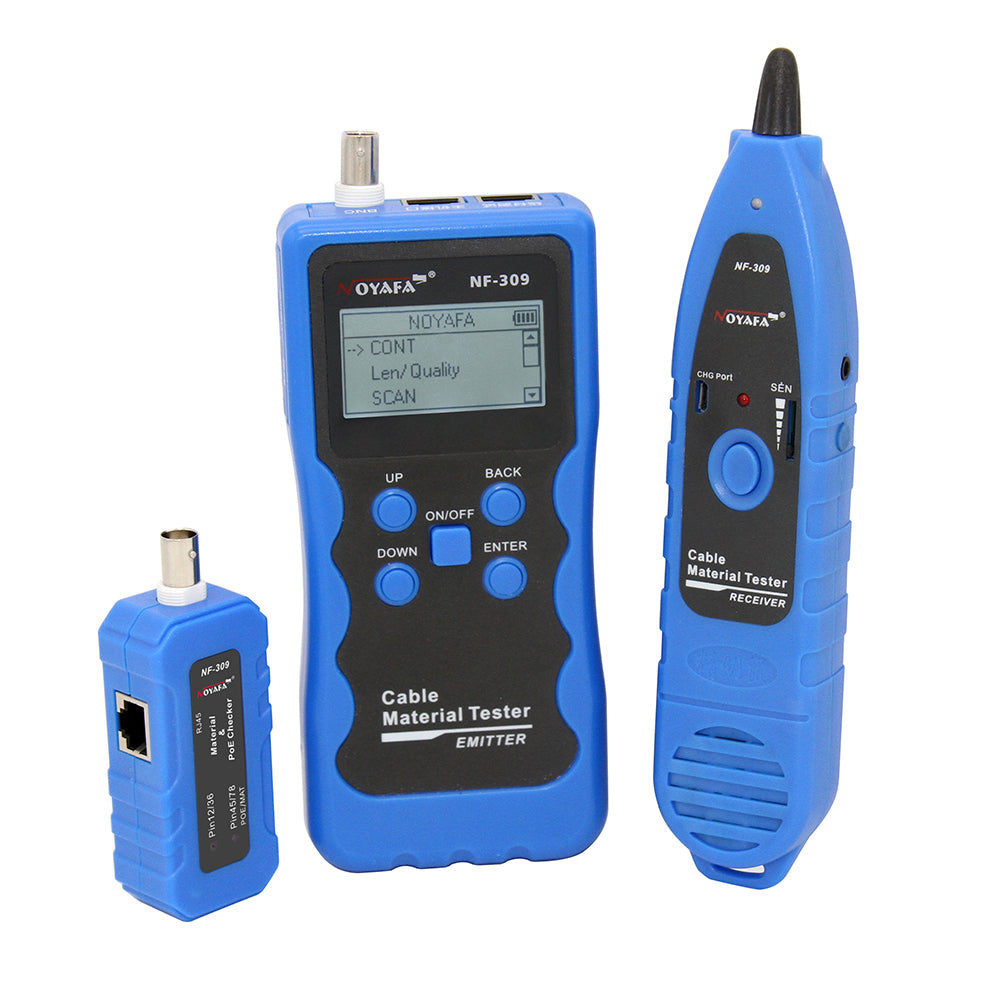

NOYAFA NF-309 Cable Tester with LCD Screen

NOYAFA NF-309 Cable Tester with LCD Screen

  • Customized support: OEM / ODM / OBM
  • Indicator: LCD 53x25 mm
  • Tone frequency: 225 KHz
  • Max. distance of transmission: 1km
  • Max. distance of cable map: 1km
  • Max. working current: 70mA
  • Cable continuity test types: RJ45, BNC cable
  • Cable scan types: RJ45,BNC,RJ11 cable
  • POE scan mode: Yes
  • Max signal voltage: 15Vp-p
  • Cable material: CAT6, CAT5 OFC, CAT5 Copper-clad aluminum etc.
  • Battery type: 3.7V 1400mAH Lithium battery
  • Charging port: Micro USB
  • Available POE switch type for power supply distance detection: 48V Standard/non-standard POE switch; 5W 15V non-standard POE switch; 5W 24V non-standard POE switch; 8W 15V non-standard POE switch; 8W 24V non-standard POE switch
  • Size (mm): 185x80x32mm

NF-309 Receiver specification

  • The Max. working current: 70mA
  • Battery type: 3.7V 1400mAH Lithium battery
  • Size (mm): 218x46x29 mm

NF-309 Remote Specification

  • ports: BNC, RJ45 (Material & POE testing )
  • Size (mm): 95*34*23mm

Product Features

  • Compatibility with Various Cable Types: It's designed to measure and test materials for Cat5, Cat6, and non-standard LAN cables, indicating a wide range of compatibility.
  • Cable Resistance Testing: This feature enables testing the resistance of cables when connected to the remote unit, an essential aspect for ensuring cable integrity.
  • Cable Tracing Functionality: It can trace RJ45, RJ11, and coaxial cables, and is designed to do so without interference from AC noise, enhancing its accuracy in cable tracing.
  • LAN Cable Length and Status Measurement: It measures both the length of LAN cables and their physical condition, aiding in the maintenance and installation of network infrastructure.
  • POE Pin Identification: The tester can identify which pins in a cable are providing power, a useful feature for diagnosing and setting up PoE devices.
  • Telephone Cable Testing: It can identify the condition of telephone cables (Tip/Ring) and perform a polarity test (Anode/Cathode), adding versatility in telecommunication settings.
